Steelinox® / inox

Ref : BDO101

Description : Bird-out® Steelinox®
Packaging : 20 M kit

Ref : BDO107

Description : Bird-out® Inox
Packaging : 20 M kit

Ref : BDO108

Description : Bird-out® Evolution
Packaging : 20 M kit

Ref : BDO116

Description : Bird-out® Evolution Inox
Packaging : 20 M kit

One kit includes :
• 40 bars (Ø 2mm – length of 1m).
• 40 UV-stabilised polycarbonate mounts.
• 2 0,50m coils of springs or BDO Clip (getting 40 connections of 2,5 cm).
• 2 connections.
• Packaging dimensions : 10 x10 x 100 cm.
• Packaging weight : 1,4 kg.
• Widths protected : see technical specifications available on request.
• Technical sheet for fitting supplied in each pack.

  • Bird out kit
Triple connexion

Ref : BDO018

Description : Triple connexion
Packaging : Unit

Ref : EVO045

Description : Black heat shrink tubing
Packaging : Unit

Ref : EVO047

Description : White heat shrink tubing
Packaging : Unit

• To connect the Bird-out® double cable or the 5000 volts cable to the bars
• Standard IEC 60228, CEI 20-22 II (Bird-out® double cable) & EN50143 (5000 volts cable).
• Heat shrink tubing (black or white).

  • Triple connexion
  • Heat shrink tubing
BDO Clip

Ref : BDO009

Description : BDO Clip
Packaging : Unit

• Length : 40 mm.
• Width : 6 mm.
• The clip ensures perfect fixing of the rods akin to a « welding process », while still facilitating directional changes without strain or pressure.

  • BDO Clip
Spring

Ref : BDO017

Description : Bird-Out® Spring
Packaging : Unit

• Lenght : 0,50 ml.

  • Spring

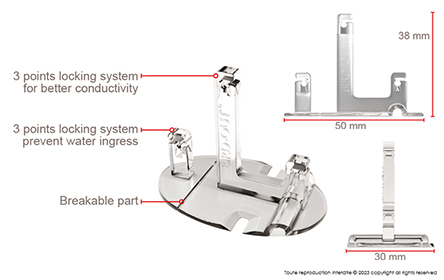

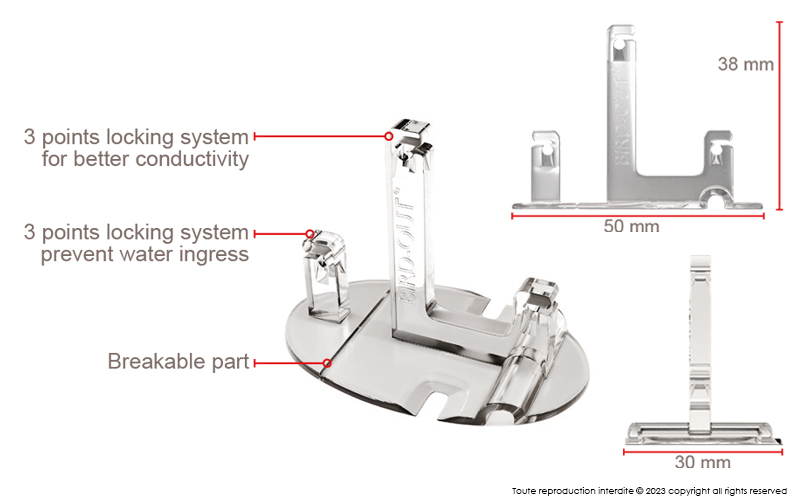

Mount

Ref : BDO012

Description : Mount
Packaging : Unit

• Multi-surface mounting and multi-directional positioning, manufactured in UV-stabilised polycarbonate.
• Anti-arcing safety system. Water repellent system. Historical monuments require 3 mounts per metre.

  • Mount
Bar

Ref : BDO011

Description : Steelinox® bar
Packaging : Unit

Ref : BDO014

Description : Stainless-Steel bar
Packaging : Unit

• Bar made of Steelinox® or stainless-steel Ø 2 mm
• length 1 m.
• Can easily be cut to the required length or bent to follow the profile of the architecture.

  • Bar made of Steelinox or stainless-steel

Selcleaning
®

Ref : SEL003
Description : Selcleaning
®
Packaging : 1 litre can
selcleaning

Directions for use :

Dilute 1 litre of professional cleaner into 4 litres of water.

Selfixing
®

Ref : SIL001
Description : Silicone Selfixing
®
Packaging : 280 ML cartridge
selfixing

• 13 to 16 linear metre / hour.
• 1 cartouche ± 200 supports Bird-Out®.

Apply to the clean and dry supports when temperatures are between +5 and +30°C

Central generator

Ref : EVO050
Description : Central generator 02
Packaging : Unit
Central generator 02

• 220 volts generator.
• Technical specifications on request.

Bird-Out® double cable

Ref : EVO100
Description : Bird-Out® double cable reel
Packaging : Spool of 50 M
double cable 10.000 volts

• To safely connect two spaced locations of the BIRD-OUT® circuit.

• Double cable with RZ flame retardant PVC sheath and multi-wire copper conductive material.

• light gray color, it has a dark gray continuous and lateral strip to mark the ㊉ side, ideal when going through a chute.

• Standard IEC 60228 and IEC 20-22 II

5000 V Cable

Ref : EVO155
Description : 5000 V Cable
Packaging : Spool of 100 M
5000 V Cable

• To connect two remote points of BIRD-OUT®.

• Covered with a reinforced electrical insulation (5000 V) and designed for high-tension current.
Conducts the highest levels of power with no loss.

• Common EN 50143

• Color: grey.

Joulimeter

Ref : EVO020
Description : Joulimeter
Packaging. : Unit
Joulimeter

• Digital multimeter and a detector losses
• Download data sheet below
